Technical Features：
1.Block Lifting Cutting Mode
There is no vibration or lateral movement caused by saw descending clearance, resulting
in better cutting quality.

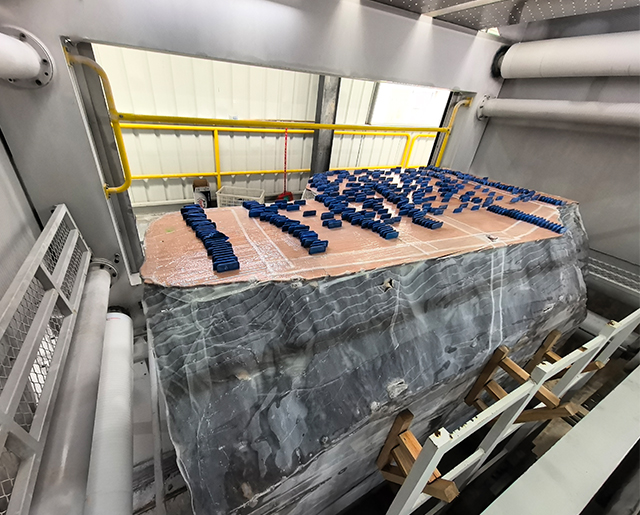

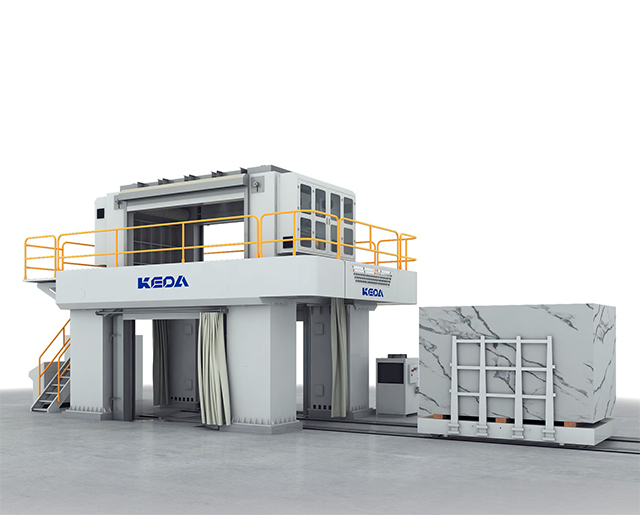

2.Block Loaded in Length Direction
Compatible with existing Gang Saw Machine Blocks Trolley and Transfer Trolley tracks,
reducing equipment replacement investment.

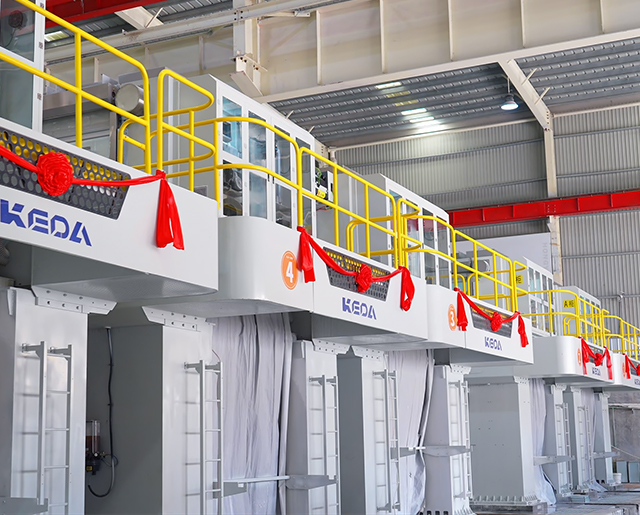

3.Operating Platform
There are fixed operating platforms around the cutting section, making diamond line
loading, blocks loading, Diamond Line Roller replacement, Diamond Line Tensioning
Roller replacement and other operations more convenient and safer.
4.Diamond Line Starting from Upper of Cutting Section
Compared to Diamond Wire Starting from Lower Part of Cutting Section, the consistency
of the diamond line tension can be further improved, resulting in better cutting quality.
5.Supporting Structures Used on Both Ends of The Diamond Line Tensioning Roller
Compared with the Cantilever Support Structure, it reduces the shaking caused by its
own weight, further reduces the probability of line breakage.
6.Framework Structure Cutting Section
Ensuring the accuracy of Diamond Line Tensioning Roller position, thereby improving
cutting quality and roller life.

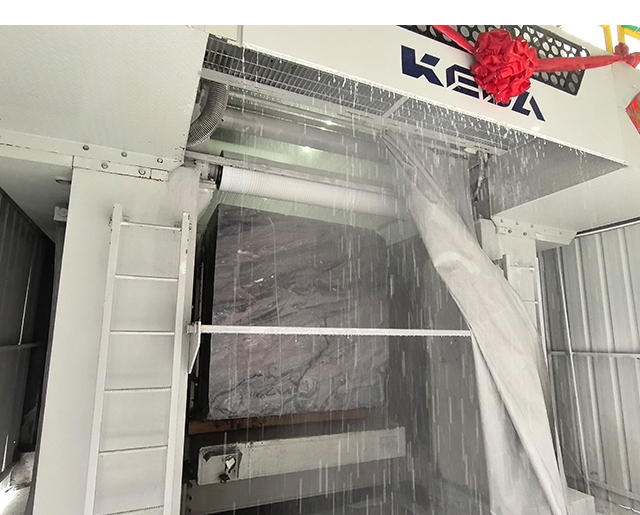

7.Fully Sealed Safety and Dust-Proof Structure
Preventing personal accidents caused by line breakage；Reducing machine noise and
water mist.
8.Operation Panel
The electrical cabinet is located on the ground, convenient for maintenance, and staying
away from dusty and humid environments;
Equipped with a remote control and a handheld operating pad for convenient operation.
